Estimate Power Spectra via the Autocovariance Function With Optional Slepian Tapers

Estimates the power spectrum from a single time series, or the mean spectrum of a set of timeseries stored as the columns of a matrix. Timeseries can contain (some) gaps coded as NA values. Gaps results in additional estimation error so that the power estimates are no longer chi-square distributed and can contain additional additive error, to the extent that power at some frequencies can be negative. We do not have a full understanding of this estimation uncertainty, but simulation testing indicates that the estimates are unbiased such that smoothing across frequencies to remove negative estimates results in an unbiased power spectrum.

The main method is documented in appendix B of Kunz and Laepple (2024).

Kunz, T., & Laepple, T. (2024). Effective Spatial Degrees of Freedom of Natural Temperature Variability as a Function of Frequency. Journal of Climate, 37(8), 2505–2518. https://doi.org/10.1175/JCLI-D-23-0040.1

Usage

SpecACF(
  x,
  deltat = NULL,
  bin.width = NULL,
  k = 3,
  nw = 2,
  demean = TRUE,
  detrend = TRUE,
  TrimNA = TRUE,
  pos.f.only = TRUE,
  return.working = FALSE
)

Arguments

x: a vector or matrix of binned values, possibly with gaps
deltat, bin.width: the time-step of the timeseries, equivalently the width of the bins in a binned timeseries, set only one
k: a positive integer, the number of tapers, often 2*nw.
nw: a positive double precision number, the time-bandwidth parameter.
demean: remove the mean from each record (column) in x, defaults to TRUE. If detrend is TRUE, mean will be removed during detrending regardless of the value of demean
detrend: remove the mean and any linear trend from each record (column) in x, defaults to FALSE
pos.f.only: return only positive frequencies, defaults to TRUE If TRUE, freq == 0, and frequencies higher than 1/(2*bin.width) which correspond to the negative frequencies are removed

Value

a spec object (list)

Author

Torben Kunz and Andrew Dolman <andrew.dolman@awi.de>

Examples

set.seed(20230312)

# Comparison with SpecMTM

tsM <- replicate(2, SimPLS(1e03, 1, 0.1))
spMk3 <- SpecACF(tsM, bin.width = 1, k = 3, nw = 2)
spMk1 <- SpecACF(tsM, bin.width = 1, k = 1, nw = 0)

spMTMa <- SpecMTM(tsM[,1], deltat = 1)
spMTMb <- SpecMTM(tsM[,2], deltat = 1)
spMTM <- spMTMa
spMTM$spec <- (spMTMa$spec + spMTMb$spec)/2

gg_spec(list(
  `ACF k=1` = spMk1,
  `ACF k=3` = spMk3,
  `MTM k=3` = spMTM
), alpha.line = 0.75) #+

  #ggplot2::facet_wrap(~spec_id)

## No gaps

ts1 <- SimPLS(1000, 1, 0.1)

sp_ACF1 <- SpecACF(ts1, 1, k = 1)
sp_MTM7 <- SpecMTM(ts1, nw = 4, k = 7, deltat = 1)
sp_ACF7 <- SpecACF(ts1, 1, k = 7, nw = 4)

gg_spec(list(
  `ACF k=1` = sp_ACF1, `ACF k=7` = sp_ACF7, `MTM k=7` = sp_MTM7
))


# With Gaps

gaps <- (arima.sim(list(ar = 0.5), n = length(ts1))) > 1
table(gaps)
#> gaps
#> FALSE  TRUE
#>   808   192
ts1_g <- ts1
ts1_g[gaps] <- NA

sp_ACF1_g <- SpecACF(ts1_g, 1)
sp_ACFMTM1_g <- SpecACF(ts1_g, bin.width = 1, nw = 4, k = 7)

gg_spec(list(
  ACF_g = sp_ACF1_g,
  ACF_g_smoothed = FilterSpecLog(sp_ACF1_g),
  ACF_g_tapered = sp_ACFMTM1_g
), conf = FALSE) +
  ggplot2::geom_abline(intercept = log10(0.1), slope = -1, lty = 2)
#> Warning: NaNs produced
#> Warning: log-10 transformation introduced infinite values.
#> Warning: NaNs produced
#> Warning: log-10 transformation introduced infinite values.
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_line()`).




## AR4
arc_spring <- c(2.7607, -3.8106, 2.6535, -0.9238)

tsAR4 <- arima.sim(list(ar = arc_spring), n = 1e03) + rnorm(1e03, 0, 10)
plot(tsAR4)

spAR4_ACF <- SpecACF(tsAR4, 1, k = 0, nw = 0)
spAR4_MTACF <- SpecACF(as.numeric(tsAR4), 1, k = 15, nw = 8)

gg_spec(list(#'
  `ACF k = 0` = spAR4_ACF,
  `ACF k = 15` = spAR4_MTACF)
)


## Add gaps to timeseries

gaps <- (arima.sim(list(ar = 0.5), n = length(tsAR4))) > 2
table(gaps)
#> gaps
#> FALSE  TRUE
#>   969    31
tsAR4_g <- tsAR4
tsAR4_g[gaps] <- NA

plot(tsAR4, col = "green")
lines(tsAR4_g, col = "blue")


table(tsAR4_g > 0, useNA = "always")
#>
#> FALSE  TRUE  <NA>
#>   486   483    31

spAR4_ACF_g <- SpecACF(as.numeric(tsAR4_g), 1, k = 0, nw = 0)
spAR4_MTACF_g <- SpecACF(as.numeric(tsAR4_g), 1, nw = 8, k = 15)

table(spAR4_ACF_g$spec < 0)
#>
#> FALSE  TRUE
#>   402    98
table(spAR4_MTACF_g$spec < 0)
#>
#> FALSE
#>   500

gg_spec(list(
  `ACF gaps k = 0` = spAR4_ACF_g,
  `ACF gaps k = 15` = spAR4_MTACF_g,
  `ACF full k = 15` = spAR4_MTACF
)
)
#> Warning: NaNs produced
#> Warning: log-10 transformation introduced infinite values.
#> Warning: NaNs produced
#> Warning: log-10 transformation introduced infinite values.
#> Warning: Removed 1 row containing missing values or values outside the scale range
#> (`geom_line()`).


#There are small numerical differences between SpecMTM and SpecACF, even when
#using the same number of tapers, because SpecMTM used adaptive tapering while
#SpecACF only implements non-adaptive tapering. This difference is only large
#for purely periodic non-stochastic signals.

## Simulate a periodic signal with three frequencies to illustrate effect of
## adaptive tapering.

f1 <- 1/10
f2 <- 1/100
f3 <- 1/1000

tau <- 1e04

time <- seq(0, tau, by = 1)

y_pure = cos(2*pi*f1*time) + cos(2*pi*f2*time) + cos(2*pi*f3*time)

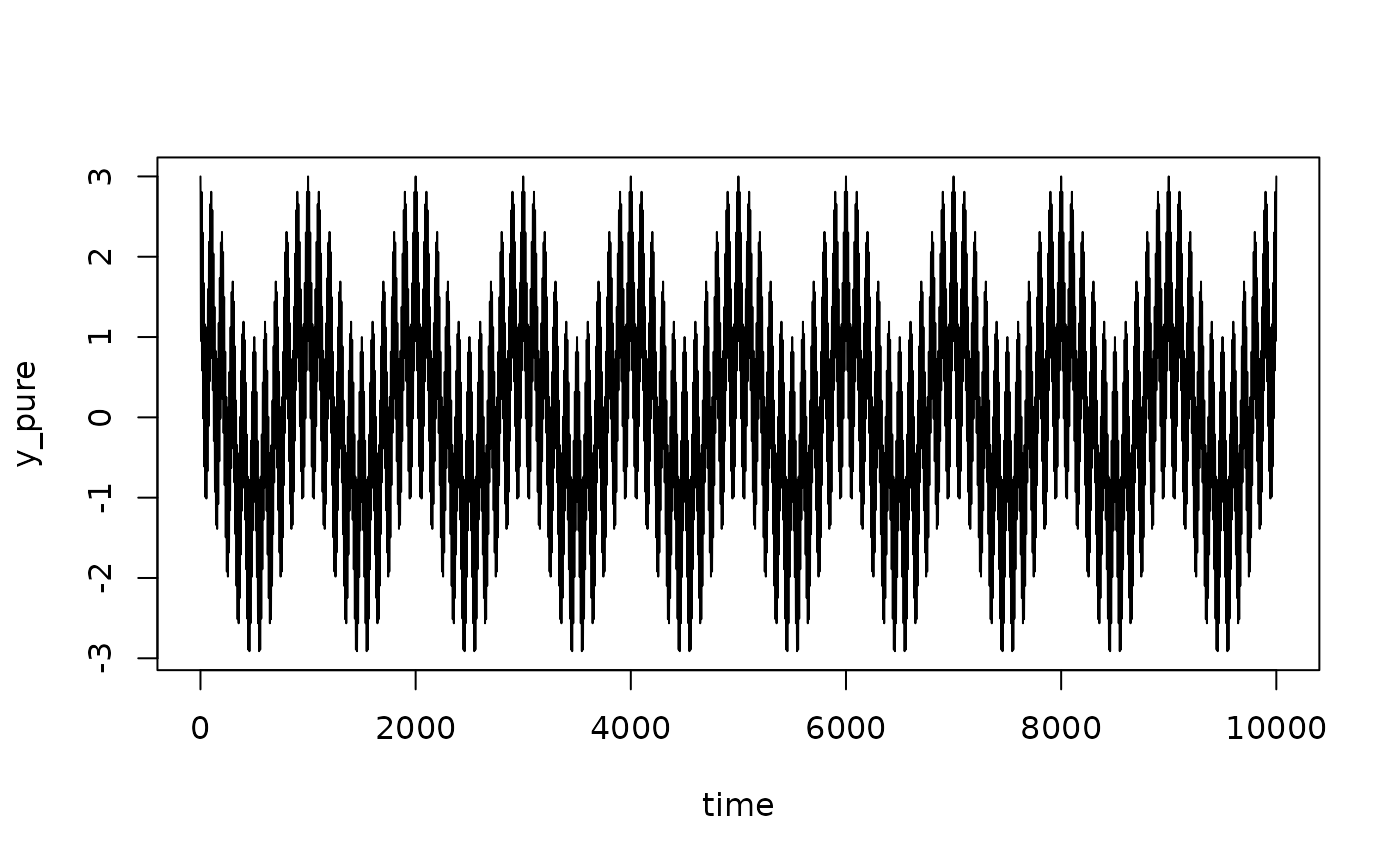

plot(time, y_pure, type = "l")


sp_y_pure_nonAdaptive <- SpecMTM(y_pure, deltat = 1, k = 9, nw = 5, adaptiveWeighting=FALSE)
sp_y_pure_adaptive <- SpecMTM(y_pure, deltat = 1, k = 9, nw = 5)
sp_y_pure_nonAdaptiveACF <- SpecACF(y_pure, deltat = 1, k = 9, nw = 5)

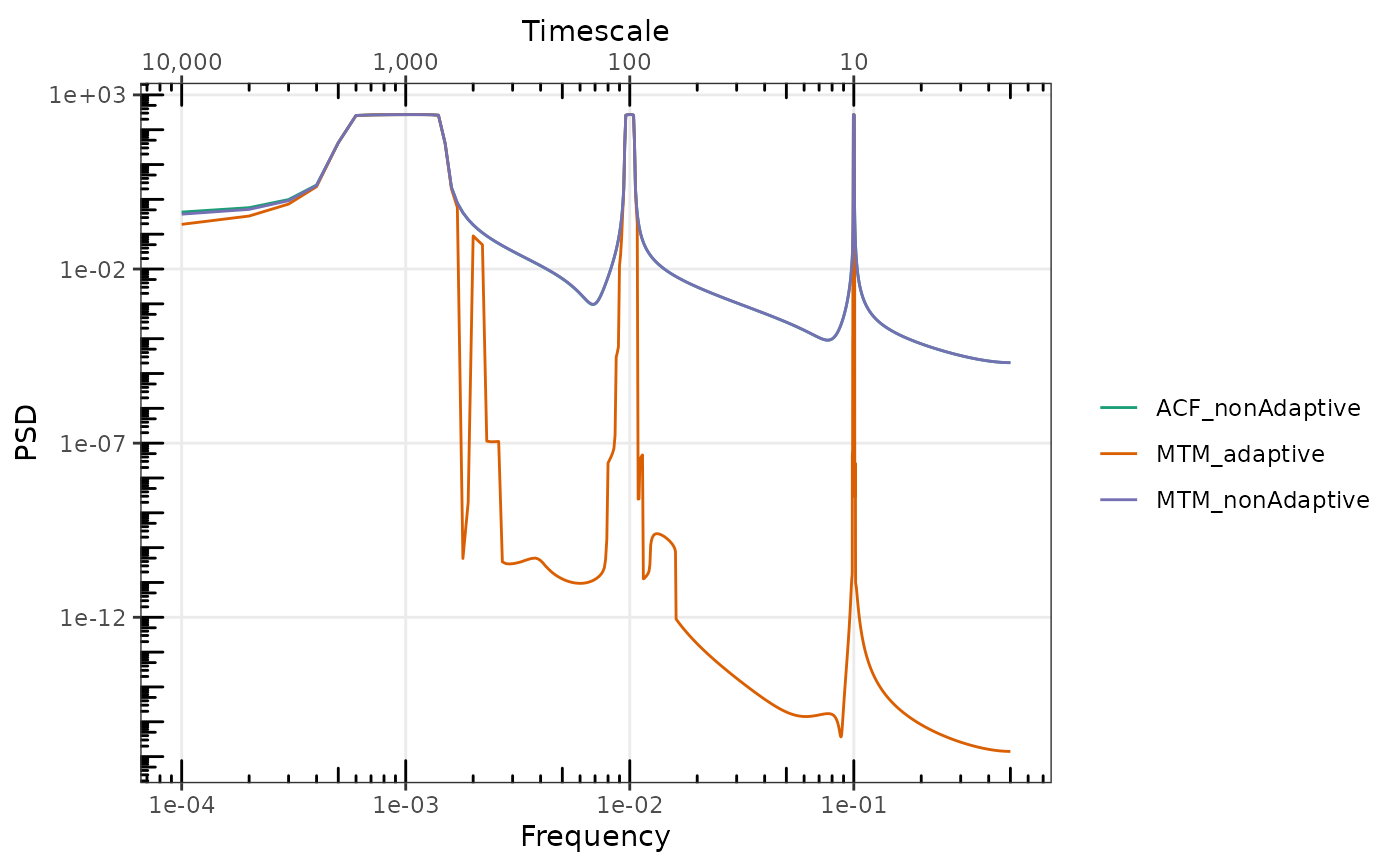

## Adaptive tapering further reduces the leaked spectral power. For purely deterministic
## signals, the relative difference is very large.

gg_spec(
  list(
    MTM_nonAdaptive = sp_y_pure_nonAdaptive,
    MTM_adaptive = sp_y_pure_adaptive,
    ACF_nonAdaptive = sp_y_pure_nonAdaptiveACF
  )
)


## With a tiny amount of white noise this difference becomes less important.

y_noise = y_pure + rnorm(length(time), 0, 0.1)

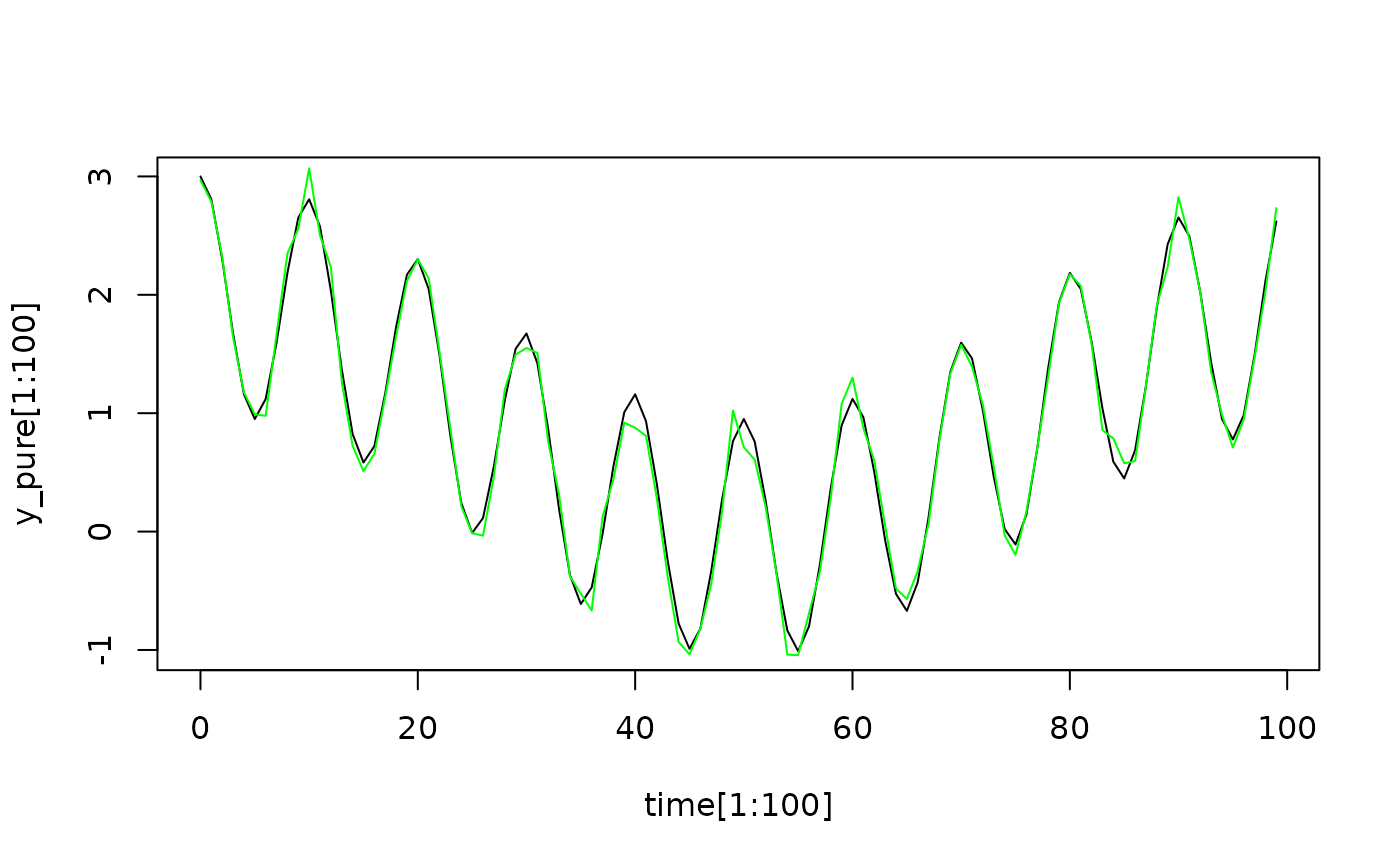

## Showing just the first 100 timepoints
plot(time[1:100], y_pure[1:100], type = "l")
lines(time[1:100], y_noise[1:100], col = "green")



sp_y_noise_nonAdaptive <- SpecMTM(y_noise, deltat = 1, k = 9, nw = 5, adaptiveWeighting=FALSE)
sp_y_noise_adaptive <- SpecMTM(y_noise, deltat = 1, k = 9, nw = 5)
sp_y_noise_nonAdaptiveACF <- SpecACF(y_noise, deltat = 1, k = 9, nw = 5)

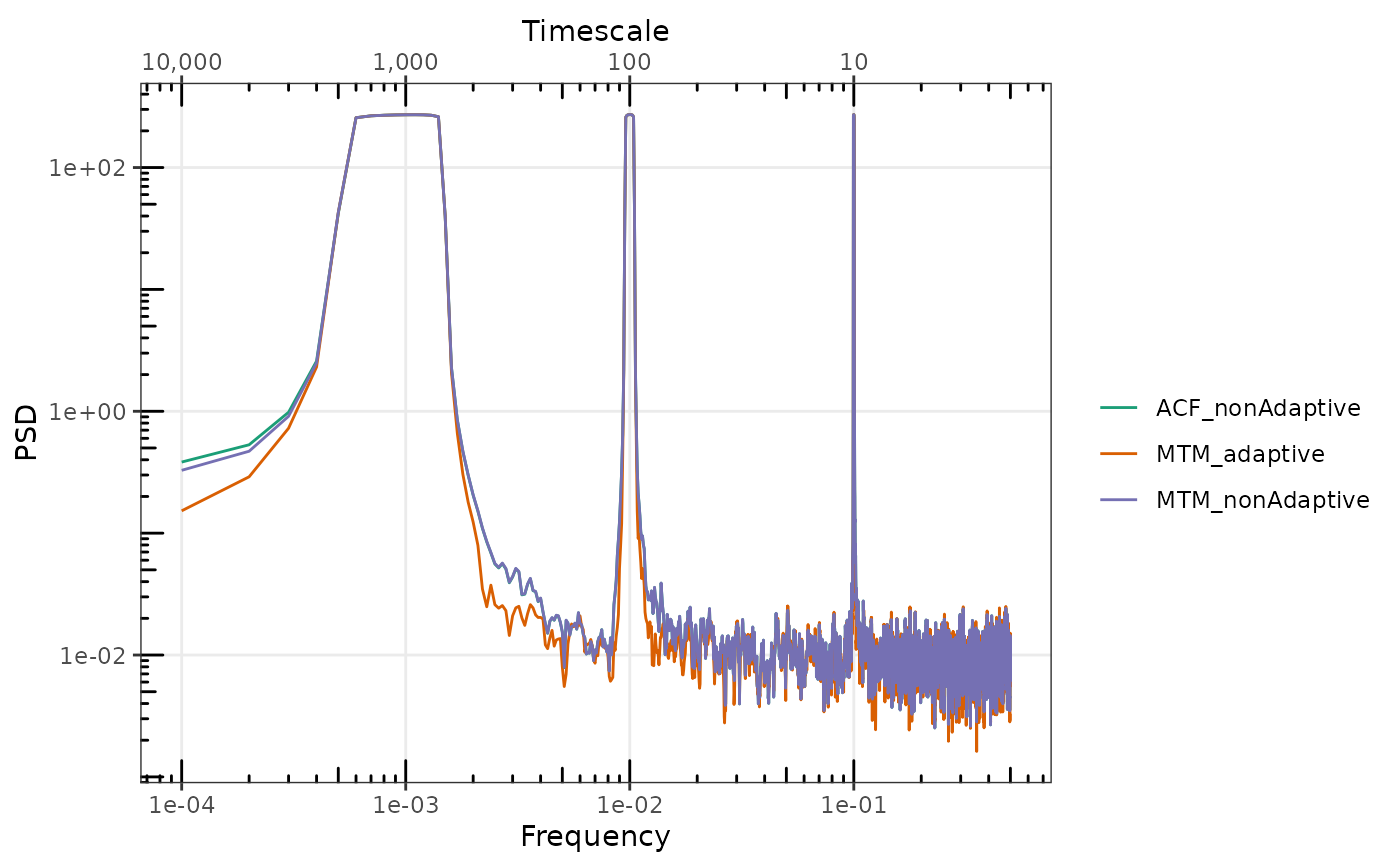

gg_spec(
  list(
    MTM_nonAdaptive = sp_y_noise_nonAdaptive,
    MTM_adaptive = sp_y_noise_adaptive,
    ACF_nonAdaptive = sp_y_noise_nonAdaptiveACF
  )
)
